Foam Dock Shelter TM70R
Foam Dock Shelter TM70R

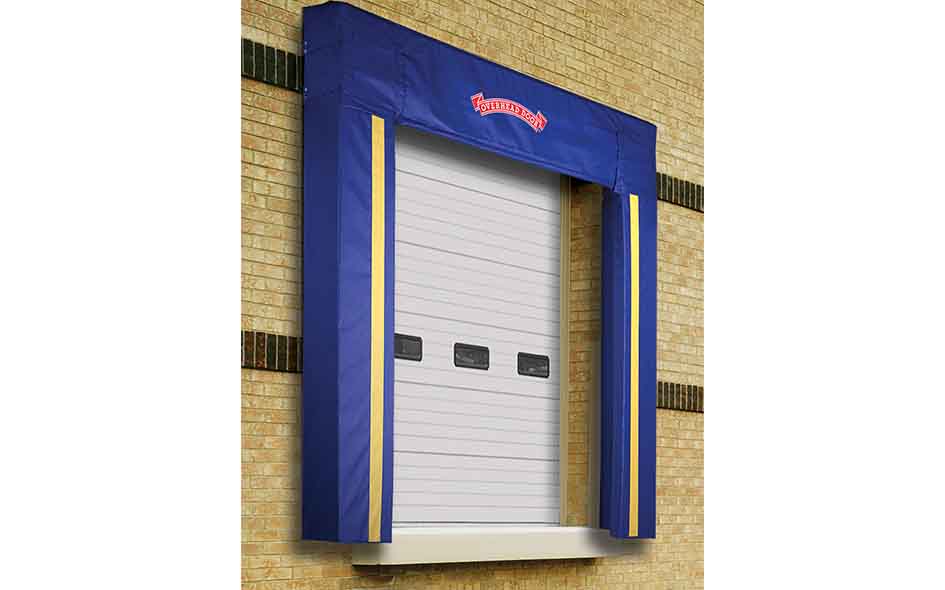

Impactable L-shaped columns hug the trailer to help seal out the weather. Along with the adjustable curtains, this shelter accommodates a wide variety of trailers with different widths and heights. It also provides access to the full width and height of the trailer.
Overhead Door™ Tech Support: 1-800-929-4692
Adjustable Curtain Heights
- Available with up to a 52” drop
- Full width steel tube that prevents curtain sagging
- With a rope and pulley assembly, the curtain adjusts to different trailer heights to help aid thermal efficiency. The curtain can be ordered with overlapping low temperature PVC strips for cold applications
High Quality Construction
- The fabric is double stitched with high strength polyester thread that has been UV treated for long term durability
- The columns have premium grade foam with full compression and recovery properties in temperatures as low as -40°F
- The fire resistant foam is continuously bonded to the backing with a non-flammable adhesive with elastic properties for long life
- Plated vent openings drain moisture and promote air circulation for compression in the vertical columns
Fabric Advantages
- Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has 6 times more abrasion resistance
- All fabrics are treated with UV protection to prevent fading
Additional Trailer Impact and Abrasion Protection
- Optional column wear pleats provide additional tearing and abrasion protection
- Heavy duty 66 oz. wear pleats on the top and bottom corners also available
Foam Dock Shelter Line Drawing
| DIMENSIONS | STANDARD | OPTIONAL |
|---|---|---|
| Column Height 10'9" | ✓ | |
| Column Height 10'10" to 12' | ✓ | |
| Column Width Back 8" and Front 20" | ✓ | |
| Column Width Front up to 30" | ✓ | |
| Shelter Width 11'4" | ✓ | |
| CURTAIN | ||
| Full Width Steel Tube | ✓ | |
| 30" Adjustable Curtain | ✓ | |
| Add drop up to 52" | ✓ | |
| 18" Fixed Curtain | ✓ | |
| Add drop up to 52" | ✓ | |
| Split Curtain - Adjustable 30" to 48" | ✓ | |
| Split Curtain - Fixed 18" to 48" | ✓ | |
| Split Curtain - Velcro (adjustable or fixed) | ✓ | |
| 30" PVC Curtain Strips | ✓ | |
| PROJECTION | ||
| 16" Projection | ✓ | |
| Projection (17" - 24") | ✓ | |
| Projection Box 4"/6"/8"/10"/12" | ✓ | |
| Taper Projection (16" - 24" top or bottom) | ✓ | |
| FABRIC WEIGHT & COLOR | ||
| 22 oz (Black, Blue, Gray, Green, Brown) | ✓ | |
| 40 oz Regular (Black, Blue, Gray, Green, Red, Brown) | ✓ | |
| 40 oz Premium (Black) | ✓ | |
| ADDITIONAL ABRASION PROTECTION | ||
| Double layer of fabric on impact area of columns (same weight/colors as above) | ✓ | |
| Scuff Guards (40 oz Regular, Black) | ✓ | |
| Wear Pleats 4"/8"/16" Exposure (same weight/color available as above) | ✓ | |
| Heavy Duty 66 oz Top and Bottom Corner Pleats 4" exposure (Black, Orange, Blue) | ✓ | |
| FRAME | ||
| Treated Lumber | ✓ | |
| Galvanized Steel | ✓ | |
| DRAFT CONTROL | ||
| Two bottom draft flaps | ✓ | |
| GUIDE STRIPES | ||
| 24" High | ✓ | |
| Full Height | ✓ | |
| MOUNTING | ||
| Galvanized Mounting Hardware | ✓ |
